Enamel Coated Flat Plate Solar Collector for Residential Hot Water Systems
SUS316L blue titanium flat plate solar collectors with 76% thermal efficiency and double circulation system are engineered for residential DHW and space heating. Linuo Ritter supplies certified OEM solutions with 30+ years service life guarantee.
1.76% High Thermal Efficiency
2.30+ Years Service Life
3.Closed Double Circulation System
4.SUS316L Stainless Steel Construction
5.Flexible Dual Installation
360ยฐ Composite Parabolic Reflector (CPC), 15%+ energy efficiency improvement, captures direct/scattered light from all angles.
U-shaped copper tube + high-selectivity absorption coated vacuum tube, copper-aluminum composite heat transfer plate, high-efficiency heat conduction.
โฅ90ยฐC high-temperature output, suitable for high-temperature applications such as industrial heating and solar cooling.
Complete pre-assembled modules, short installation time; minimized tube-to-plate gaps, reducing welding points and preventing leaks.
Tool-free quick replacement of vacuum tubes; CPC reflector’s unique fastening technology allows for easy disassembly.
Inlet and outlet pipes can be filled left or right; low pressure loss supports multi-module series and parallel connection.
| Item | FP-1.5mยฒ/80mm | FP-2mยฒ/80mm | FP-2.4mยฒ/80mm | FP-3mยฒ/80mm |
| Gross Length / width / height | 1500*1000*80 mm | 2000*1000*80mm | 2000*1200*80mm | 2000*1500*80mm |
| Gross area | 1.5m2 | 2m2 | 2.4m2 | 3m2 |
| Aperture Length / width / number | 1451*957mm | 1950*950mm | 1950*1150mm | 1950*1450mm |
| Aperture area | 1.4m2 | 1.88m2 | 2.26m2 | 2.76m2 |
| Absorber Length / width / thickness [mm] | 1451*957*0.4mm | 1950*950*0.4mm | 1950*1150*0.4mm | 1950*1920*0.4mm |
| Absorber area | 1.40m2 | 1.85m2 | 2.21m2 | 2.8m2 |
| Net weight | 30 Kg | 35Kg | 38Kg | 40Kg |
| Cover Length / width / thickness | 1472*983*3.2mm | 1976*976*3.2mm | 1976*1176*3.2mm | 1976*1476*3.2mm |
| Cover material | Low iron ultra white cloth toughened glass | |||
| Solar transmittance of glass cover | 0.915 | |||
| Absorber material | Aluminum | |||
| Solar absorptance of absorber [%] | 0.92 | |||
| Hemispherical emittance of absober [%] | ๏ผ5% | |||
| Absorber coating | Blue coating | |||
| Header tube material | TP2 Copper pipe | |||
| Header tube outter diameter / thickness | ฯ22*0.6 | |||
| Riser tube material | TP2 Copper pipe | |||
| Riser tube length / outter diameter / thickness | ฯ8*0.4 | |||
| Connector Size | ฯ22 | |||
| Thermal insulation material (back) | Polyster | |||
| Thermal insulation thickness (back) | 20mm | 20mm | 20mm | 20mm |
| Thermal insulation material (side) | Polyster | Polyster | Polyster | Polyster |
| Thermal insulation thickness (side) | 18mm | 18mm | 20mm | 20mm |
| Enclosure side material | 6063-T5 | 6063-T5 | 6063-T5 | 6063-T5 |
| Enclosure back material | Aluminized zinc plate | |||
| Sealing material | structural adhesive | |||
| Maximum operation pressure [kpa] | 800 | |||
| Maximum operation temperature (โ) | 186 | |||
| Recommend heat transfer medium | Deionized water/Antifreezing fluid | |||

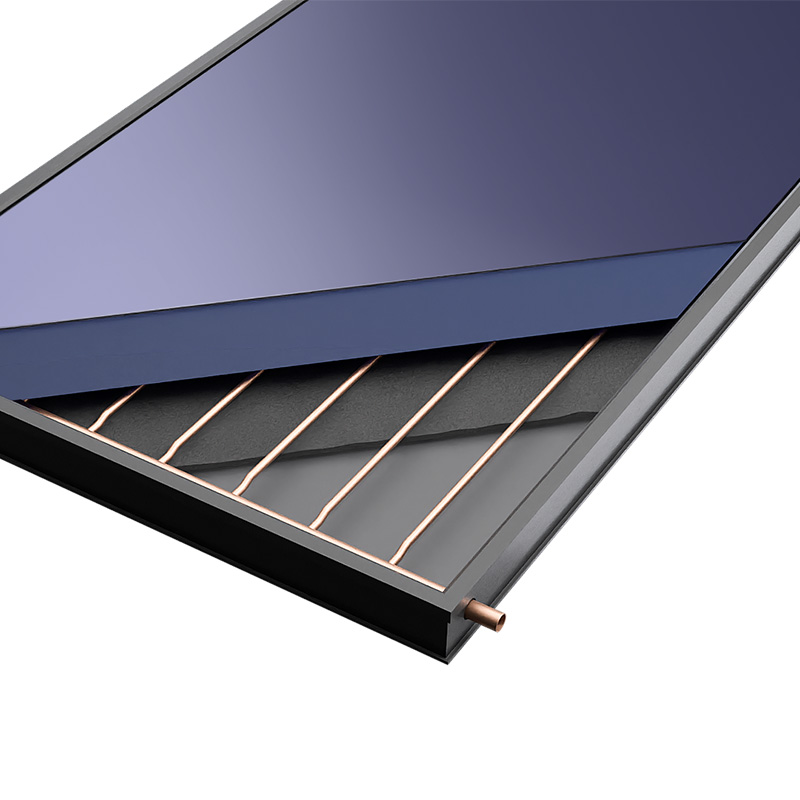

SUS316L Blue Titanium Flat Plate Solar Collector
As a certified flat plate solar collector manufacturer, Linuo Ritter supplies high-efficiency glazed solar thermal panels with 76% thermal efficiency and 30+ years service life.

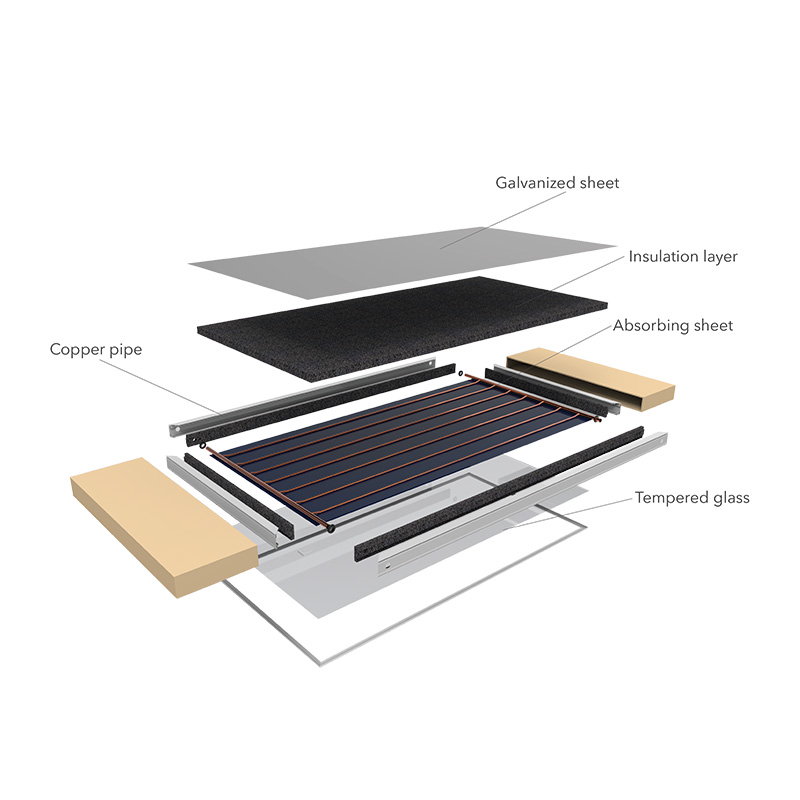

Product structure
These enamel-coated flat panel collectors feature closed double circulation system for anti-scaling and anti-freezing performance, ensuring stable residential DHW and space heating. Available in FP150-300L(S) series with 1.82-3.64ใก aperture area, our wholesale solar collector arrays suit pitched and flat roof installations. Bulk supply and OEM customization for global distributors and EPC contractors from 80,000ใก automated production base.
