Features
Energy Class: A++
Multi function of heating, cooling and hot water
Full DC inverter compressor and fan motor
EVI technology to ensure stable performance at -25℃
Wired controller with Wifi smart control
R410A refrigerant, environmental friendly
Features
Energy Class: A++
Multi function of heating, cooling and hot water
Full DC inverter compressor and fan motor
EVI technology to ensure stable performance at -25℃
Wired controller with Wifi smart control
R410A refrigerant, environmental friendly

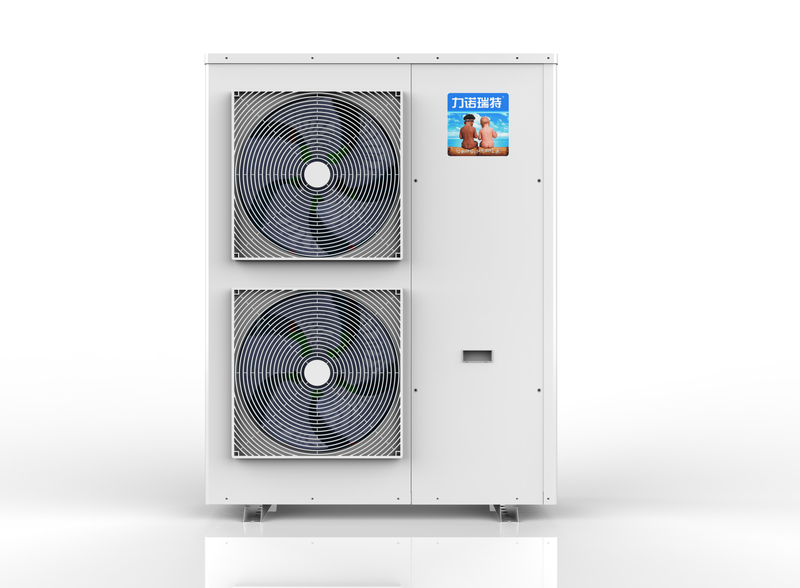

Monoblock air source heat pump for heating / cooling / hot water | |||||
Model | LPR-9ID/BP | LPR-15ID/BP | LPR-18ID/BP | LPR-18IID/BP | |
Rated voltage | 220V~/50Hz | 380V/3N~/50Hz | |||
Performance Condition: Ambient temperature: 7℃/6℃; water inlet/outlet temperature: 30℃/35℃ | |||||
Heating capacity Min./Max. | kW | 3.39~8.06 | 7.99~15.67 | 8.21~22.79 | 8.31~23.37 |
Heating input power Min./Max. | kW | 0.78~1.97 | 1.79~4.38 | 1.82~6.06 | 1.97~6.35 |
Performance Condition: Ambient temperature: 35℃/24℃; water inlet/outlet temperature: 12℃/7℃ | |||||
Cooling capacity Min./Max. | kW | 1.08~4.94 | 5.80~11.04 | 5.97~14.84 | 5.31~14.44 |
Cooling input power Min./Max. | kW | 0.80~2.24 | 2.08~5.32 | 1.92~6.30 | 2.05~7.57 |
Performance Condition: Ambient temperature: 20℃/15℃; water inlet/outlet temperature:15℃/55℃ | |||||
Hot water capacity Min./Max. | kW | 3.68~8.66 | 8.36~15.83 | 10.00~23.38 | 7.76~25.58 |
Hot water input power Min./Max. | kW | 0.61~2.05 | 1.36~4.38 | 1.85~6.13 | 1.93~7.42 |
Max. input power | kW | 3.3 | 5.70 | 6.75 | 6.75 |
Max. input current | A | 15.0 | 25.90 | 30.68 | 13.40 |
Compressor (Type-quantity) | Rotary / 1 | Rotary / 1 | Rotary / 1 | Rotary / 1 | |
Circulation water flow | m3/h | 1.3 | 2.15 | 2.80 | 2.80 |
Max. hot water output temperature | ℃ | 60 | 60 | 60 | 60 |
Noise (Cooling/Heating) | dB(A) | 60 | 62/63 | 63/64 | 63/64 |
Electric shock protection | I Type | I Type | I Type | I Type | |
Water proof level | IPX4 | IPX4 | IPX4 | IPX4 | |
Refrigerant | kg | R410A/2.2 | R410A/3.3 | R410A/4.2 | R410A/4.2 |
Connector | G1" | G1" | G1-1/4" | G1-1/4" | |
Dimension | mm | 1116*470*772 | 1226*500*841 | 1120*470*1470 | 1120*470*1470 |
Packing demension | mm | 1140*480*795 | 1321*530*850 | 1140*480*1515 | 1140*480*1515 |
Gross weight | kg | 80 | 105 | 154 | 154 |
Working temperature | ℃ | -25℃~43℃ | -30℃~43℃ | -30℃~43℃ | -30℃~43℃ |
