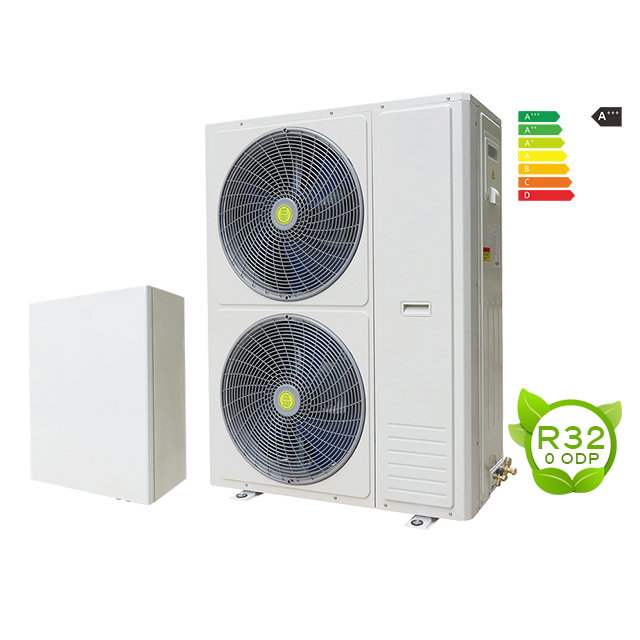

R32 Inverter EVI Air to Water Heat Pump, with concise metal casing, it creatively combines eco-friendly R32 refrigerant, full inverter technology and EVI technology with modern appearance, which can be powerful in performance and elegant in appearance.
Advantages
High Efficiency A+++ Energy Level
Air to Water Heat Pump is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness.
Not only does our heat pumps use R32 green gas and inverter technology, but also be rated with A+++ energy label. With top energy rating A+++, the unit is currently most energy efficient and can greatly reduce energy bills for customers.
DC Inverter Technology
The DC inverter technology ensures the optimum performance of the heat pump unit when running at ambient temperature as low as -25℃, which offers the users with comfortable house heating and stable hot water supply all year round.
R32 Refrigerant
R32 contributes greatly to the environment protection since R32 has a low GWP of 675 which is just 32% of R410A. In the same heat pump system, with lower liquid density, the charge amount of R32 is less than that of R410A, which brings in higher economic efficiency. The heat needed to evaporate R32 is greater than that of R410A so that the required mass flow rate per unit is smaller and the COP is higher. We not only take care of your family but also contribute to protecting the earth.
Stable Running at -25℃
Under low ambient Temperature, the performance of normal heat pumps will be limited. First, the lower the ambient temperature, the weaker the heating ability. Second, reliability, low temperature environment will affect the stability of the machine and operation reliability. Third, the operating width and safety range will affect the performance of the heat pump. Thanks to the unique Inverter technology, our heat pump can operate efficiently at -25°C, maintain high COP and reliable stability.
R32 Inverter EVI Air to Water Heat Pump, with concise metal casing, it creatively combines eco-friendly R32 refrigerant, full inverter technology and EVI technology with modern appearance, which can be powerful in performance and elegant in appearance.
Advantages
High Efficiency A+++ Energy Level
Air to Water Heat Pump is specially developed with the most cutting-edge heat pump technology and modern design to meet stringent requirements for efficiency, stability and quietness.
Not only does our heat pumps use R32 green gas and inverter technology, but also be rated with A+++ energy label. With top energy rating A+++, the unit is currently most energy efficient and can greatly reduce energy bills for customers.
DC Inverter Technology
The DC inverter technology ensures the optimum performance of the heat pump unit when running at ambient temperature as low as -25℃, which offers the users with comfortable house heating and stable hot water supply all year round.
R32 Refrigerant
R32 contributes greatly to the environment protection since R32 has a low GWP of 675 which is just 32% of R410A. In the same heat pump system, with lower liquid density, the charge amount of R32 is less than that of R410A, which brings in higher economic efficiency. The heat needed to evaporate R32 is greater than that of R410A so that the required mass flow rate per unit is smaller and the COP is higher. We not only take care of your family but also contribute to protecting the earth.
Stable Running at -25℃
Under low ambient Temperature, the performance of normal heat pumps will be limited. First, the lower the ambient temperature, the weaker the heating ability. Second, reliability, low temperature environment will affect the stability of the machine and operation reliability. Third, the operating width and safety range will affect the performance of the heat pump. Thanks to the unique Inverter technology, our heat pump can operate efficiently at -25°C, maintain high COP and reliable stability.
R32 DC Inverter Air Sourcce Heat Pump Split System Specifications | |||||||
Model name | LPR-8ID/INV/S | LPR-10ID/INV/S | LPR-12ID/INV/S | LPR-14ID/INV/S | LPR-16ID/INV/S | ||
Power supply | V / Ph / H | 220-240 / 1 / 50 | |||||
Heating1 | Capacity | kW | 8.3 | 10.2 | 12.2 | 14.3 | 16.1 |
Rated input | kW | 1.6 | 2.1 | 2.45 | 3.1 | 3.57 | |
COP | 5.2 | 4.85 | 4.97 | 4.61 | 4.51 | ||
Heating2 | Capacity | kW | 8.21 | 10.1 | 12.3 | 14.5 | 16.0 |
Rated input | kW | 2.1 | 2.63 | 3.24 | 3.9 | 4.44 | |
COP | 3.91 | 3.84 | 3.8 | 3.72 | 3.6 | ||
Heating3 | Capacity | kW | 8.0 | 9.8 | 12.1 | 13.8 | 16.0 |
Rated input | kW | 2.45 | 3.06 | 3.87 | 4.6 | 5.52 | |
COP | 3.26 | 3.2 | 3.13 | 3.00 | 2.90 | ||
Cooling4 | Capacity | kW | 8.5 | 10.2 | 12.0 | 13.5 | 14.9 |
Rated input | kW | 1.67 | 2.09 | 3 | 3.75 | 4.38 | |
EER | 5.09 | 4.88 | 4.0 | 3.6 | 3.4 | ||
Cooling5 | Capacity | kW | 7.8 | 8.5 | 11.6 | 12.7 | 14.0 |
Rated input | kW | 2.2 | 2.5 | 4.22 | 4.98 | 5.71 | |
EER | 3.55 | 3.4 | 2.75 | 2.55 | 2.45 | ||
Seasonal space heating energy efficiency class | LWT at 35℃ | A+++ | A+++ | A+++ | A+++ | A+++ | |
LWT at 55℃ | A++ | A++ | A++ | A++ | A++ | ||
SCOP | LWT at 35℃ | 5.21 | 5.2 | 4.82 | 4.75 | 4.63 | |
LWT at 55℃ | 3.36 | 3.5 | 3.45 | 3.45 | 3.42 | ||
SEER | LWT at 7℃ | 5.83 | 5.98 | 4.88 | 4.86 | 4.69 | |
LWT at 18℃ | 8.95 | 8.75 | 7.2 | 6.8 | 6.75 | ||
MOP(Maximum overcurrent protection) | A | 19 | 19 | 30 | 30 | 30 | |
MCA(minimum circuit amps) | A | 16 | 17 | 25 | 26 | 27 | |
Refrigerant system pressure (Max. / Min.) | 1.5MPa / 4.15MPa | ||||||
Refrigerant | Type | R32 | |||||
Charged | kg | 1.65 | 1.65 | 1.84 | 1.84 | 1.84 | |
GWP value | 675 | ||||||
Compressor | Type | Mitsubishi Twin rotary DC inverter | |||||
Brand | Mitsubishi | ||||||
Quantity | 1 | ||||||
Outdoor fan | Motor type | Brushless DC motor | |||||
Number of fans | 1 | ||||||
Air side heat exchanger | Finned tube | ||||||
Fan motor | Fan type | 3 blade | |||||
Motor type | BLDC | ||||||
Motor model | EHTSO1DLQ | ||||||
Motor Brand | Panasonic | ||||||
Quantity | 1 | ||||||
Throttle type | Electronic expansion valve | ||||||
Water side heat-exchanger | Plate heat exchanger | ||||||
Piping connections | Type | Flare | |||||
Liquid Dia .(OD) | mm | Φ9.52 | |||||
Gas Dia.(OD) | mm | Φ15.88 | |||||
Min.pipe length | m | 2 | |||||
Max.pipe length | m | 30 | |||||
Isntallation height difference | Outdoor unit above | m | 20 | ||||
Outdoor unit below | m | 20 | |||||
Sound power level6 | INDOOR | dB | 59 | 60 | 64 | 65 | 68 |
Controller (Standard: LCD) | GR-LC07 | ||||||
Anti-UV cover | NO | ||||||
Net/Gross weight | INDOOR-Net/Gross | kg | 41/46 | ||||
OUTDOOR-Net/Gross | kg | 76/85 | 76/85 | 97/108 | 97/108 | 97/108 | |

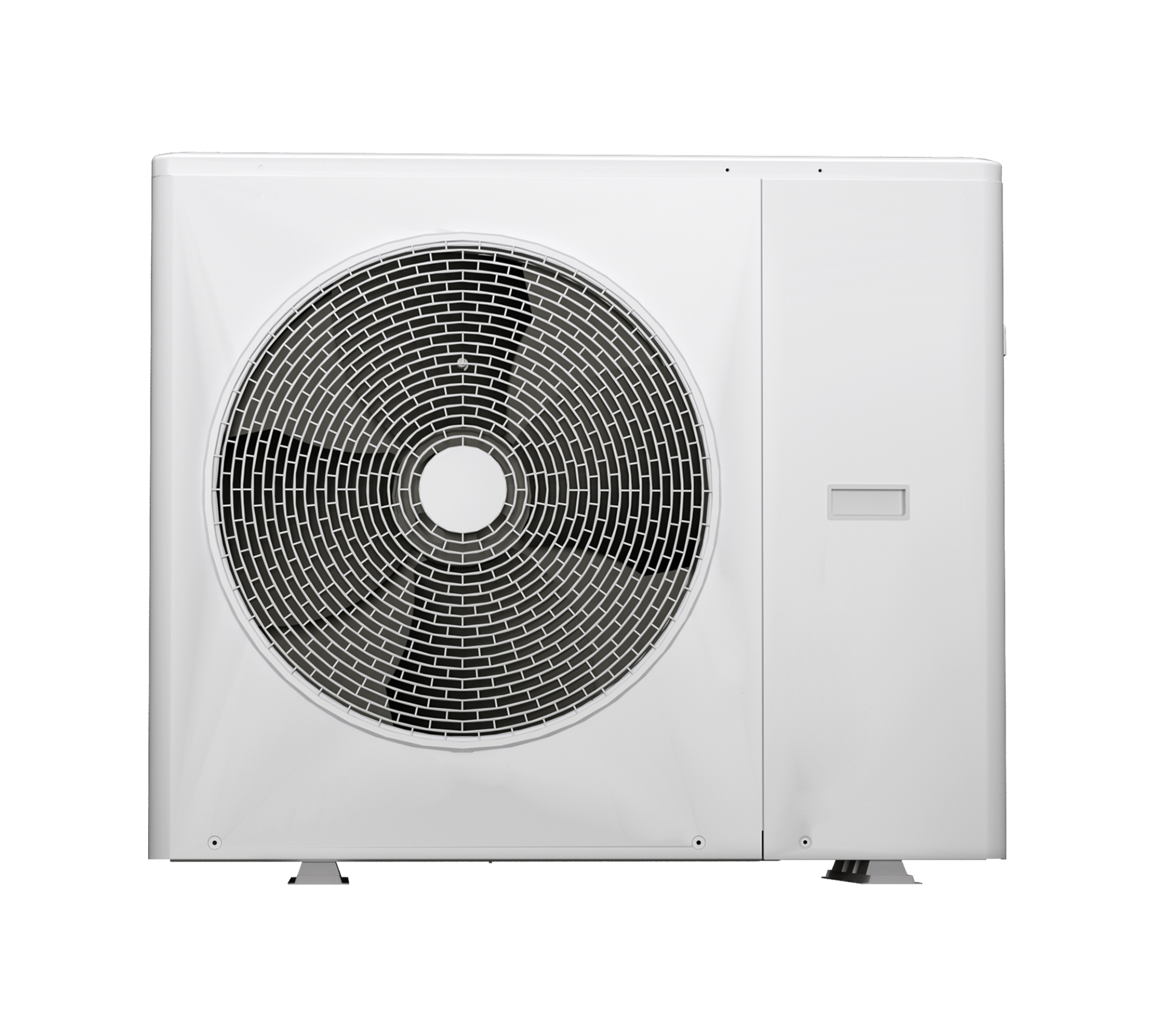

Dimension (L×W×H) | OUTDOOR-Net | mm | 947*403*813 | 1118*865*523 | |||
OUTDOOR-Packing | mm | 1045*485*960 | 1180*890*560 | ||||

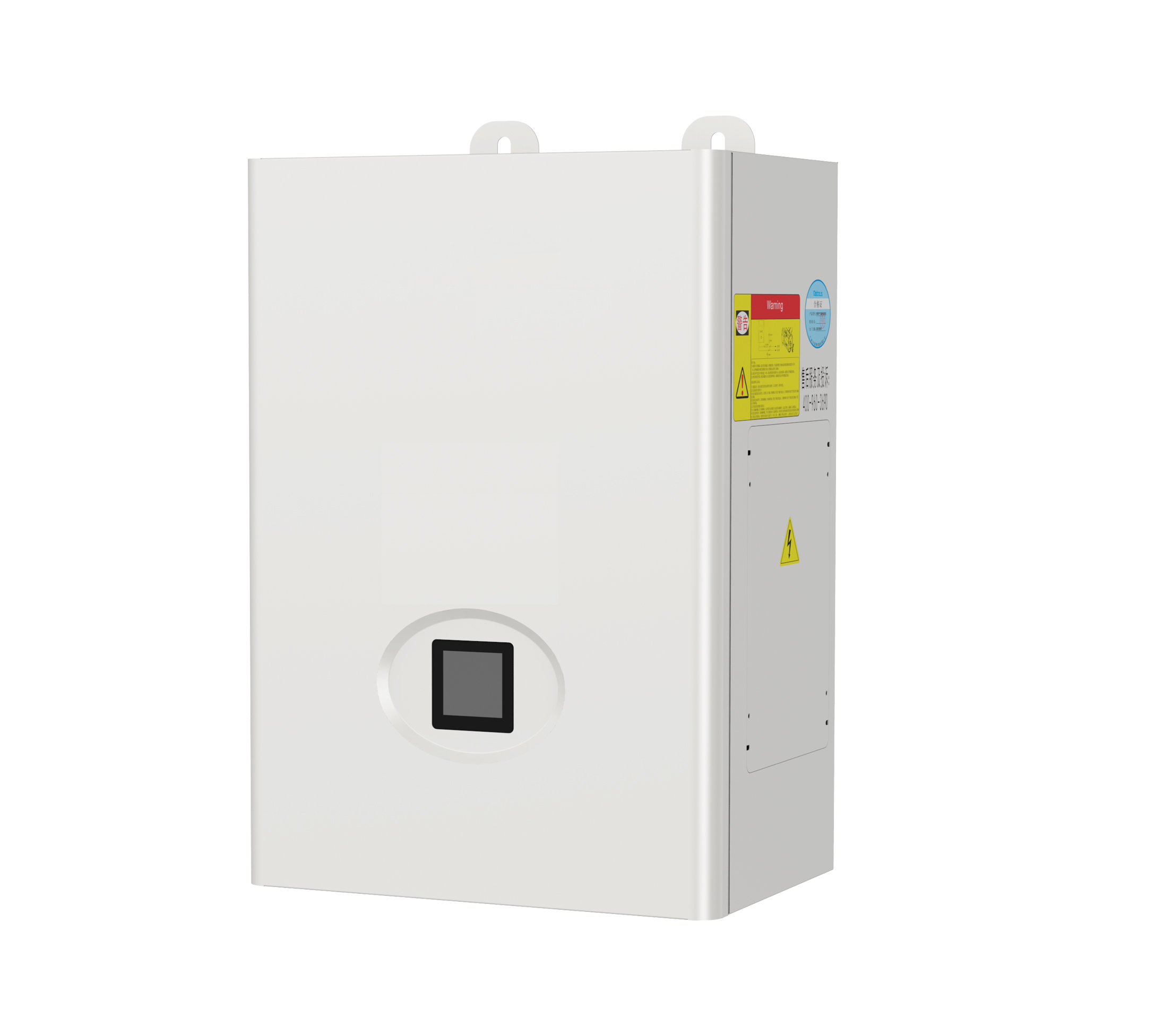

INDOOR-Net | mm | 456*820*270 | |||||
INDOOR-Packing | mm | 960×525×345 | |||||
Operating temperature | Cooling | ℃ | -5 to 43 | ||||
Heating | ℃ | -25 to 35 | |||||
DHW | ℃ | -25 to 43 | |||||
Note: | |||||||
1、Outdoor air temperature 7℃ DB ,85% R.H ; EWT 30℃,LWT 35℃ | |||||||
2、Outdoor air temperature 7℃ DB ,85% R.H ; EWT 40℃,LWT 45℃ | |||||||
3、Outdoor air temperature 7℃ DB ,85% R.H ; EWT 47℃,LWT 55℃ | |||||||
4、Outdoor air temperature 35℃ DB ,85% R.H ; EWT 23℃,LWT 18℃ | |||||||
5、Outdoor air temperature 35℃ DB ,85% R.H ; EWT 12℃,LWT 7℃ | |||||||
6、Test standard:EN12102-1 |
