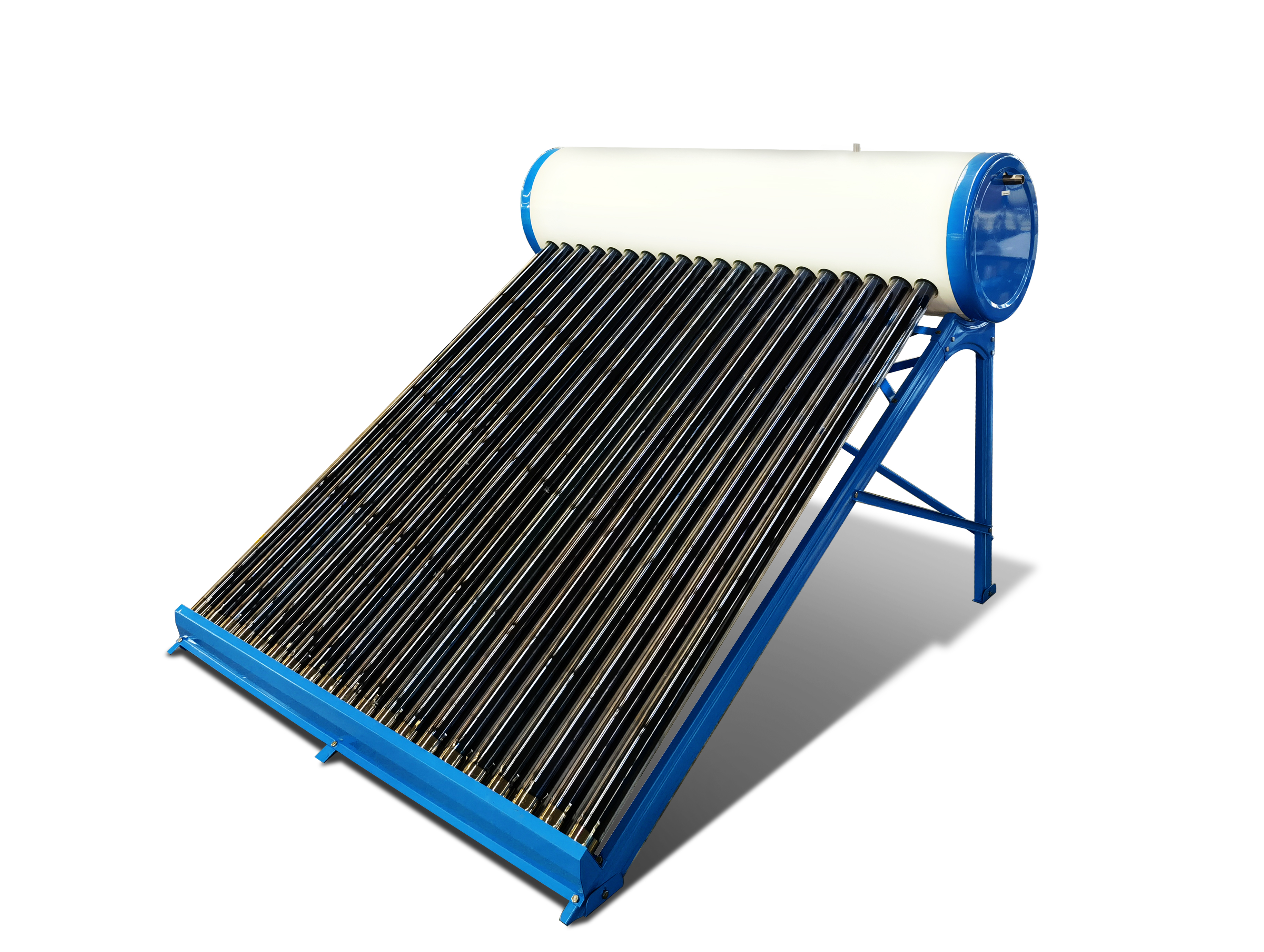

NON-PRESSURIZED SOLAR WATER HEATER (ECONOMY)

Availability:

Non-pressurized solar water heater is a cost-effective system for residential hot water applications. This system is designed according to thermosiphon principle and operating with proportion difference between cold water and hot water. The water heated by vacuum tube is held in the storage tank were the insulation preserves the heat.


Product Characteristics

  • Cost-effective solar water heating solution

  • Long cooperating life time but low maintenance costs and repair requirement.

  • Short amortization rate

  • Customized solar water heating solution

  • High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation

  • High-quality stainless steel in the inner tank to continuously maintain a good water quality.



Series100L150L200L300L
General infoRated operating pressureMpa0.060.060.060.06
Gross surface aream21.332.012.694.06
Aperture aream20.921.371.622.7
Dimensions (L x W x H)mm990x1976x13421370x1976x13421750x1976x13422510x1976x1342
Water tankTank dimensionsmmφ450×990φ450×1370φ450×1750φ450×2510
Tank package dimensionsmm1060x550x4901440x550x4901820x550x4902580x550x490
Weightkg16202434
Inner tankMaterial
Stainless Steel SUS304-2B
Diameter / thicknessmmφ350 / 0.4
Outer tankMaterial
White painted steel
Diameter / thicknessmmφ450 / 0.4
Side cover
Blue painted steel
InsulationMaterial / thicknessmmPolyurethane / 50
TubeNumberpcs10152030
Type
φ58 x 1800 mm vacuum tube
Tube package dimensionsmm1870 x 330 x 165
BracketMaterial
Galvanized painted steel
Colour
Standard Blue
Inclinationdegree30°
Weightkg57811
Other parts

Electric heating
No
