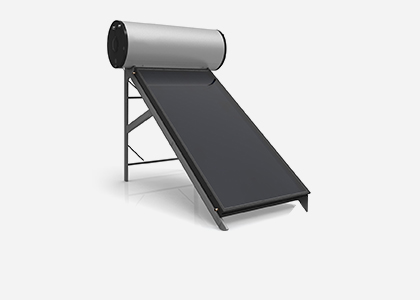

FLAT PLATE SOLAR WATER HEATER(Enamel)

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Flat plate solar water heater has three main parts: water tank, flat plate collector, frame. This type of products uses SUS316L as inner tank materials, it can enhance the tank operating life. Flat plate solar collector can absorb the heat from the sunlight and provide heat with water tank.


Product Characteristics

  • Quick supply for shower hot water.

  • Pressurized system operation.

  • High explosion protection collector performance.

  • Without overheating problem in summer season.

  • Long operating life but low in mainenance cost.

  • Special designed system bracket can be applied for both flat roof and pitched roof.

  • Corrosion resistant SUS316 as inner tank material toensure tank operating life and water quality.


Series120L150L200L
Series number
FP-120LFP-150LFP-200L

Rated operating pressureMpa0.7
Gross surface aream2224
Aperture aream21.821.823.64
Dimensions (L x W x H)mm1115*1930*18501335*1930*18502050*1930*1850
Water tankTank dimensionsmmφ520 x 1120φ520 x 1335φ520 x 1695
Tank package dimensionsmm1225×565×5651440×565×5651800×565×565
Weightkg65KG70KG85KG
Inner tankMaterial
Enamel
Diameter / thicknessmmφ426/1.8
Outer tankMaterial
Painted steel
Diameter / thicknessmmφ520/0.4
Side cover
Gray painted steel
InsulationMaterial / thicknessmmPolyurethane / 47
CollectorCollector type
FP2000FP2000FP2000x2
Collector weight
363672
BracketMaterial / thicknessmmGalvanized sheet/1.5
Colour
Black
Inclinationdegree35°
Weightkg22KG23KG24KG
Other partsTP Valve Temp./ Pressure°C/Mpa85 / 0.7
Electric heatingW200020002000
