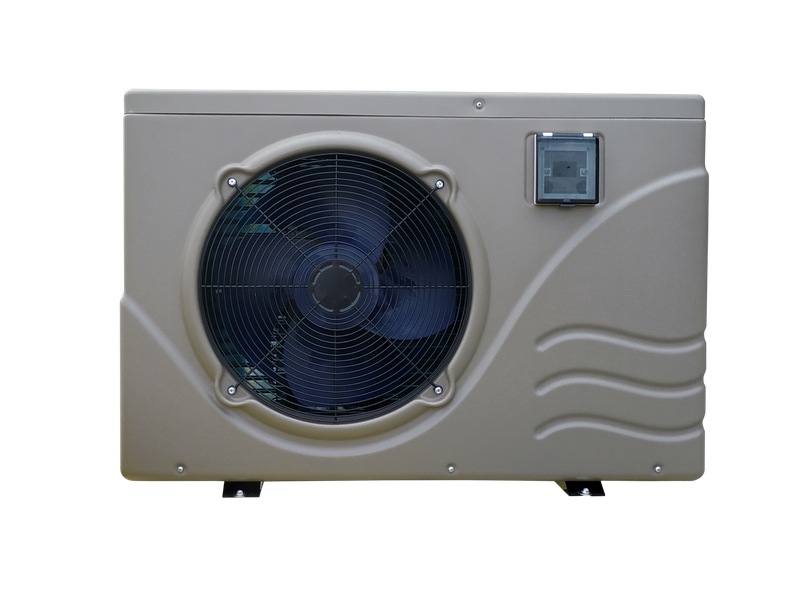

Features
R32 refrigerant, less GWP than R410A, environmental friendly
Anti-UV ABS casing
Reliable performance with multi-protections
Titanium heat exchanger, corrosion resistant
Integrated controller with WiFi smart control
Heating, Cooling and Auto function included.
GMCC compressor, twin-rotary and DC inverter technology

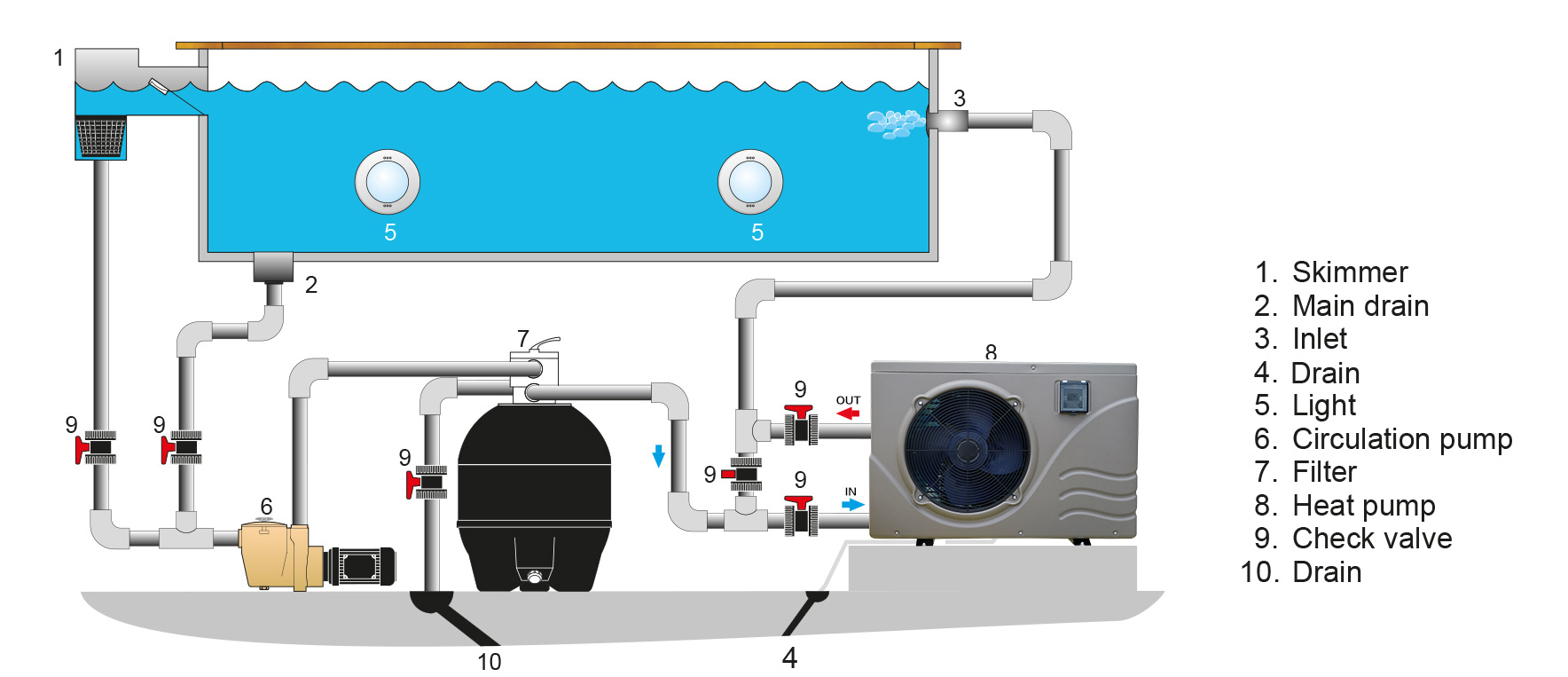

Installation diagram
Features
R32 refrigerant, less GWP than R410A, environmental friendly
Anti-UV ABS casing
Reliable performance with multi-protections
Titanium heat exchanger, corrosion resistant
Integrated controller with WiFi smart control
Heating, Cooling and Auto function included.
GMCC compressor, twin-rotary and DC inverter technology
Installation diagram
Product model | Unit | LPRY-7I/Bp | LPRY-12I/Bp | LPRY-15I/Bp | LPRY-18I/Bp | LPRY-20I/Bp |
Working temperatuer range | ℃ | 15°C~40°C | 15°C~40°C | 15°C~40°C | 15°C~40°C | 15°C~40°C |
Cooling temperatuer range | ℃ | 7°C~35°C | 7°C~35°C | 7°C~35°C | 7°C~35°C | 7°C~35°C |
Operating range | ℃ | -15°C~43°C | -15°C~43°C | -15°C~43°C | -15°C~43°C | -15°C~43°C |
Heating Capacity at Air 26℃ Humidity 80% Water 26℃ in 28℃ out | ||||||
Capacity | KW | 8.21~2.34 | 12.12~3.02 | 13.52~3.79 | 17.01~4.83 | 22.23~6.49 |
Power input | KW | 1.47~0.17 | 1.88~0.22 | 2.38~0.28 | 3.03~0.36 | 4.06~0.48 |
Input current | A | 6.69~0.77 | 8.55~1 | 10.82~1.28 | 13.77~1.64 | 18.45~2.18 |
COP | 14.68~7.02 | 14.79~7.12 | 15.17~7.23 | 15.36~6.94 | 15.97~6.95 | |
Heating Capacity at Air 15℃ Humidity 70% Water 26℃ in 28℃ out | ||||||
Capacity | KW | 6.92~1.76 | 8.73~2.23 | 11.61~2.87 | 14.74~3.59 | 19.68~4.77 |
Power input | KW | 1.54~0.23 | 1.95~0.29 | 2.54~0.38 | 3.18~0.47 | 4.17~0.63 |
Input current | A | 7~1.05 | 8.86~1.32 | 11.55~1.73 | 14.45~2.14 | 18.95~2.86 |
COP | 7.58~4.95 | 7.63~4.98 | 7.61~4.96 | 7.57~4.95 | 7.59~4.96 | |
Heating Capacity at Air 35℃, Water 29℃ in 27℃ out | ||||||
Capacity | KW | 5.36~1.38 | 6.88~1.82 | 8.86~2.24 | 11.07~2.86 | 14.52~3.64 |
Power input | KW | 1.51~0.21 | 1.88~0.27 | 2.47~0.34 | 3.11~0.44 | 4.04~0.55 |
Input current | A | 6.86~0.95 | 8.55~1.23 | 11.23~1.55 | 14.14~2.00 | 18.36~2.50 |
COP | 6.51~3.54 | 6.62~3.65 | 6.58~3.58 | 6.57~3.56 | 6.61~3.59 | |
Power supply | 220~240V/50(60)Hz | |||||
Max power input | KW | 2.853 | 3.656 | 3.925 | 4.985 | 5.962 |
Rated power | KW | 1.54 | 1.95 | 2.54 | 3.18 | 4.17 |
Rated current | A | 7 | 8.86 | 11.55 | 14.45 | 18.95 |
Fuse or circuit breaker(A) | A | 15 | 20 | 20 | 25 | 30 |
Water flow | m³/h | 3.5 | 4.5 | 5.5 | 6.5 | 9 |
Refrigerant | R32 | |||||
Refrigerant volume | g | 460 | 850 | 850 | 950 | 1170 |
Min pressure/max pressure | Mpa | 0.2/4.4 | 0.2/4.4 | 0.2/4.4 | 0.2/4.4 | 0.2/4.4 |
Water proof level | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 | |
Pressure loss | (mCE) | 1 | 1.1 | 1.1 | 1.1 | 1.1 |
Net Dimension (L x W x H) | mm | 836*379*591 | 896*389*641 | 896*389*641 | 896*389*641 | 1056*416*744 |
Package Dimensions (L x W x H) | mm | 930*400*716 | 990*435*750 | 990*435*750 | 990*435*750 | 1146*460*869 |
Net Weight | kg | 43 | 53 | 54 | 58 | 86 |
Gross Weight | kg | 53 | 64 | 65 | 69 | 97 |
