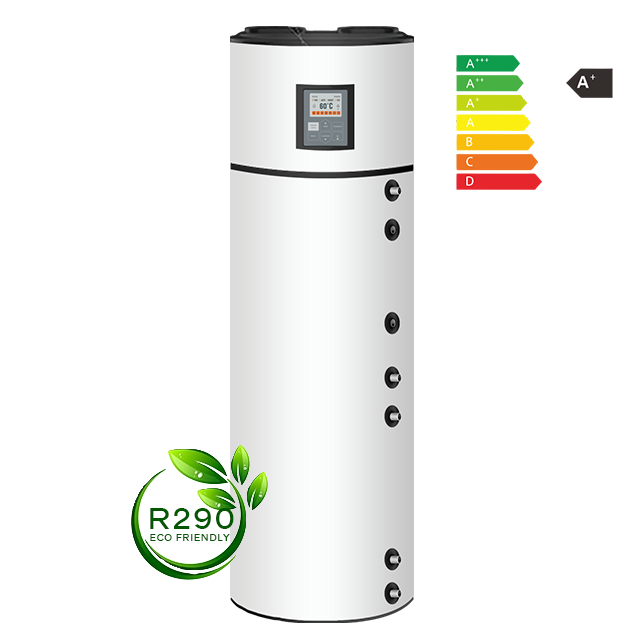

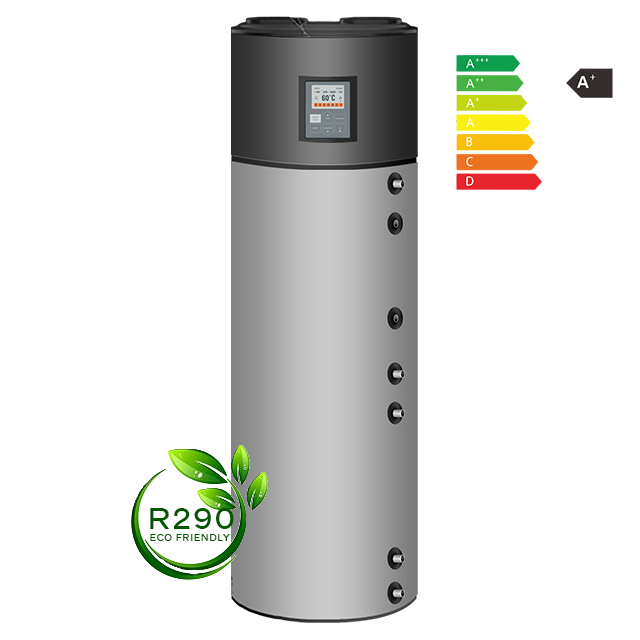

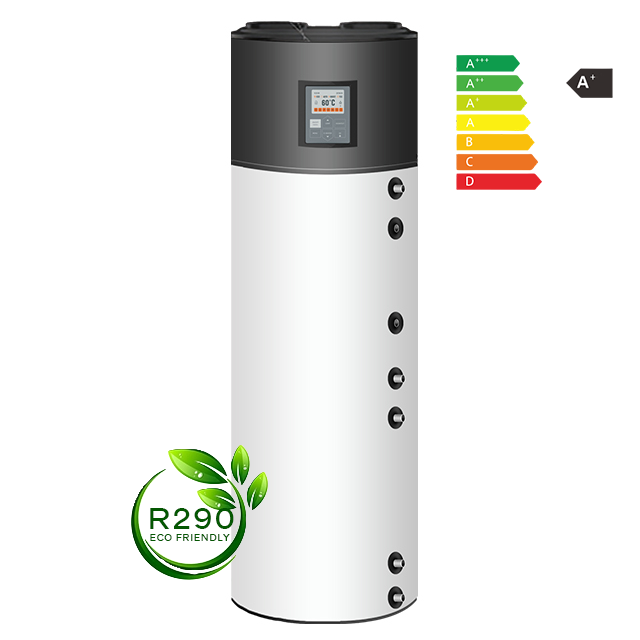

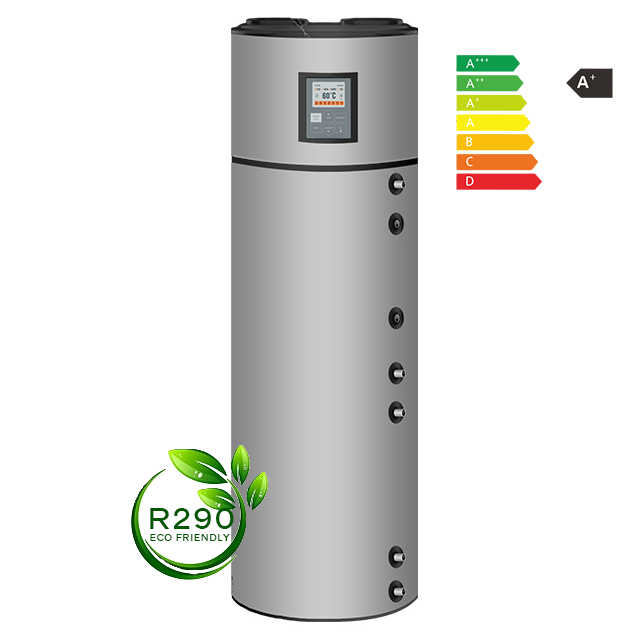

Features:
High Efficiency, friendly for environment
Energy Class: A+
Well-known brand compressor, GMCC
R290 refrigerant, lower GWP, environmental friendly
D-shape aluminum pipe to increase the heating conductivity
High reliability
Multi-protection functions
EXV control technology to achieve accuracy refrigerant control
Easy Installation and operation
All-in-one design, more convenient for installation, only need to plug in pipes
Customized design with coil for integration with solar thermal system
Flexible air duct connection
Wide working range
Higher outlet temperature up to 70℃
Ambient temperature: -5℃ to 43℃
Setting temperature: 10℃ to 70℃
Tank volume with wide range: 200L, 300L, 500L
Easy to Operate
Equipped with a simple and clear controller, even the elderly and children can easily manage it.
High Quality Water Tank
From the inside to the outside, the water tank is made of safe and durable materials to ensure long service life.
Installation diagram
Features:
High Efficiency, friendly for environment
Energy Class: A+
Well-known brand compressor, GMCC
R290 refrigerant, lower GWP, environmental friendly
D-shape aluminum pipe to increase the heating conductivity
High reliability
Multi-protection functions
EXV control technology to achieve accuracy refrigerant control
Easy Installation and operation
All-in-one design, more convenient for installation, only need to plug in pipes
Customized design with coil for integration with solar thermal system
Flexible air duct connection
Wide working range
Higher outlet temperature up to 70℃
Ambient temperature: -5℃ to 43℃
Setting temperature: 10℃ to 70℃
Tank volume with wide range: 200L, 300L, 500L
Easy to Operate
Equipped with a simple and clear controller, even the elderly and children can easily manage it.
High Quality Water Tank
From the inside to the outside, the water tank is made of safe and durable materials to ensure long service life.
Installation diagram
TECHNICAL DATA | LPR-HW-200L | LPR-HW-300L | LPR-HW-500L | LPRHW-16/200L/PP | LPRHW-16/300L/PP | |
Power supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | |||
Water tank volume | L | 200 | 300 | 500 | 200 | 300 |
Max power input | W | 700+1600 (e-heater) | 1420+1600 (e-heater) | 3200 | 3200 | |
Max current | A | 3.2 +6.8 (e-heater) | 6.2 +6.8 (e-heater) | 15 | 15 | |
Max.outlet water temperature range(without using E-heater) | ℃ | 60 | 70 | 70 | ||
Max. water temperature | ℃ | 70 | ||||
Ambient working temp. | ℃ | -5~43 | -7~43 | |||
Refrigerant type | R134a | R290 | R290 | |||
Fan motor | Type | asynchronous motor | ||||
W | 80 | 194 | 80 | 80 | ||
RPM | 1280 | 1300 | 1280 | 1280 | ||
Air flow | m3/h | 450 | 900 | 450 | ||
Duct diameter | mm | 177 (Fit flexible 180/200mm duct) | 150 | |||
Max allowed pressure of tank | bar | 10 | 10 | |||
Inside body material of tank |
| SUS 304/SUS 316 | Enamel | |||
Auxiliary electrical heater | kW | 1.6(incoloy825) | 2500 | |||
Electronic expansion valve |
| yes | yes | |||
Magnesium stick |
| yes | yes | |||
Solar heat exchanger |
| Optional (SUS316 ~ 1m2) | Optional (Enamel) | |||
Hot water outlet | inch | G 3 / 4 | G 3 / 4 | |||
Solar heat source inlet/outlet | inch | G 3 / 4 | G 3 / 4 | |||
Cold water inlet | inch | G 3 / 4 | G 3 / 4 | |||
Drainage | inch | G 3 / 4 | G 3 / 4 | |||
Condensed water outlet | inch | G 1 / 2 | G 1 / 2 | |||
Heat pump heat exchanger material | Aluminium alloy | Aluminium alloy | ||||
Net Dimensions | mm | φ560x1750 | φ640x1845 | φ700x2250 | φ620*1672 | |
Packing Dimensions | mm | 615x615x1870 | 695x695x1965 | 750x750x2355 | 700*700*1790 | |
Net Weight | Kg | 90 | 97 | 122 | 110 | |
Weight with full water | Kg | 290 | 397 | 622 | 310 | |
Gross Weight | Kg | 94 | 101 | 127 | 125 | |
Noise level | dB (A) | 46 | 46 | 48 | 46 | |
NOTES: | ||||||
* During disinfection, the max water temp could be up to 70°C by electrical heater |
